PVC Cements
Weld-On® cements have the widest range of high-strength, Low VOC solvent cements for every PVC application, for rigid as well as flexible PVC pipe and fittings. Low VOC cements are environmentally friendly with lower emissions and reduced odor, and they surpass the most stringent regulations.* Regular, medium, heavy and extra heavy bodied cements are specifically formulated for PVC pipe in virtually every schedule and in sizes with interference fit from 1/2″ to 30″ diameter. These products are ideal for use with potable water pressure systems, irrigation, industrial piping, sewer and DWV systems.
*SCAQMD Rule 1168/316
Regular Bodied PVC Cements
 |
 |
 |
| Product |
Weld-On 700™ PVC |

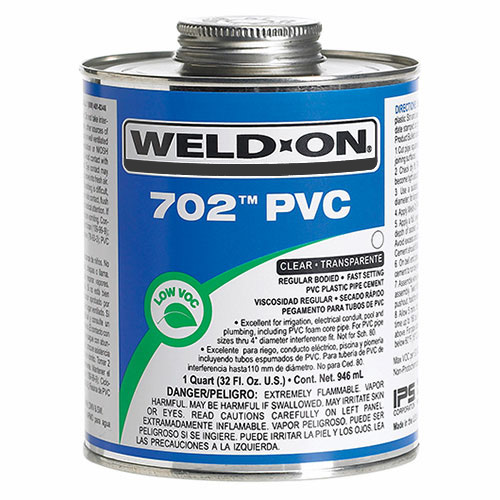

Weld-On 702™ PVC |
Weld-On 710™ PVC |
| Available Color |
Clear
|
Clear
|
Clear
|
| Max Recommended Pipe Size |
4″ (110 mm)
|
4″ (110 mm)
|
2″ (63 mm)
|
| Relative Set Time |
Fast
|
Fast
|
Very Fast
|
| Applicable Performance Specification |
ASTM D 2564 NSF/ANSI 14 NSF/ANSI 61
|
ASTM D 2564 NSF/ANSI 14 NSF/ANSI 61
|
ASTM D 2564 NSF/ANSI 14 NSF/ANSI 61
|
| Classes, Schedules & Types |
|
All Rigid PVC (Not for Sch. 80 – PN 10 or higher)
|
All Rigid PVC (Not for Sch. 80 – PN 10 or higher)
|
| Shelf Life |
4 Years
|
3 Years
|
3 Years
|
| Available Sizes |
Gallon (#10078) Quart (#10079) Pint (#10080) 1/2 Pint (#10081) 1/4 Pint (#10082)
|
Gallon (#10974) Quart (#10975) Pint (#10976) 1/2 Pint (#10977) 1/4 Pint (#10978)
|
Gallon (#10111) Quart (#10112) Pint (#10113) 1/2 Pint (#10114) 1/4 Pint (#10115)
|
×
Medium Bodied PVC Cements
 |
 |
 |
| Product |

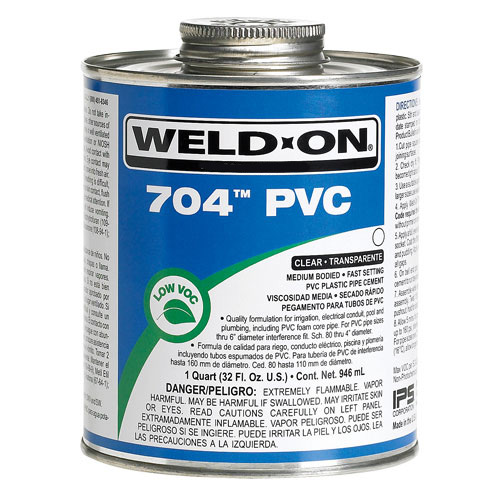

Weld-On 704™ PVC |
Weld-On 705™ PVC |
Weld-On 721™ PVC |
| Available Color |
Clear
Gray
|
Clear
Gray
|
Blue
|
| Max Recommended Pipe Size |
6″ (160 mm)
4″ (110 mm)
Sch. 80 – PN 10 & 16
|
6″ (160 mm)
4″ (110 mm)
Sch. 80 – PN 10 & 16
|
6″ (160 mm)
4″ (110 mm)
Sch. 80 – PN 10 & 16
|
| Relative Set Time |
Fast
|
Fast
|
Fast
|
| Applicable Performance Specification |
ASTM D 2564
NSF/ANSI 14
NSF/ANSI 61
CSA B137.3
CSA B181.2
|
ASTM D 2564
NSF/ANSI 14
NSF/ANSI 61
CSA B137.3
CSA B181.2
|
ASTM D 2564
NSF/ANSI 14
NSF/ANSI 61
|
| Classes, Schedules & Types |
All Rigid PVC
|
All Rigid PVC
|
All Rigid PVC
|
| Shelf Life |
3 Years
|
Clear: 4 years
Gray: 3 years
|
3 Years
|
| Available Sizes |
Clear:
Gallon (#12122)
Quart (#12123)
Pint (#12124)
1/2 Pint (#12125)
1/4 Pint (#12126)
Gray:
Gallon (#12127)
Quart (#12128)
Pint (#12129)
1/2 Pint (#12130)
1/4 Pint (#12131)
|
Clear:
Gallon (#10085)
Quart (#10089)
Pint (#10093)
1/2 Pint (#10097)
1/4 Pint (#10100)
3/4 Oz. (#10103)
Gray:
Gallon (#10086)
Quart (#10090)
Pint (#10094)
1/2 Pint (#10098)
1/4 Pint (#10101)
|
Gallon (#10160)
Quart (#10161)
Pint (#10162)
1/2 Pint (#10163)
1/4 Pint (#10849)
|
×
 |
 |
| Product |
Weld-On 711™ PVC |
Weld-On 717™ PVC |
| Available Color |
Gray
|
Clear
Gray
|
| Max Recommended Pipe Size |
12″ (315 mm)
|
12″ (315 mm)
|
| Relative Set Time |
Medium
|
Medium
|
| Applicable Performance Specification |
ASTM D 2564
NSF/ANSI 14
NSF/ANSI 61
CSA B137.3
CSA B181.2
|
ASTM D 2564
NSF/ANSI 14
NSF/ANSI 61
CSA B137.3
CSA B181.2
|
| Classes, Schedules & Types |
All Rigid PVC
|
All Rigid PVC
|
| Shelf Life |
3 Years
|
Clear: 4 years
Gray: 3 years
|
| Available Sizes |
Gallon (#10117)
Quart (#10119)
Pint (#10121)
1/2 Pint (#10123)
|
Clear:
Gallon (#10141)
Quart (#10144)
Pint (#10147)
1/2 Pint (#10150)
1/4 Pint (#10861)
Gray:
Gallon (#10142)
Quart (#10145)
Pint (#10148)
1/2 Pint (#10151)
|
×
Extra Heavy Bodied PVC Cements
